      Dragino LHT52

      Updated 20 January 2025 Edit on GitHub
      Copy page
      • View as MarkdownThis page as plain text
      • Open in ChatGPTAsk questions about this page
      • Open in ClaudeAsk questions about this page
      Generic Node Sensor Edition

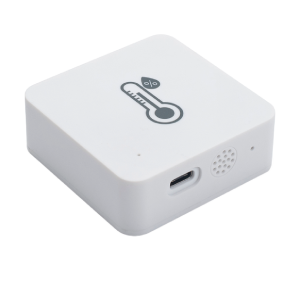

      The Dragino LHT52 is a temperature & humidity sensor. It features a Type-C port for connecting to accessories, such as an external temperature sensor for example.

      Provisioning Information

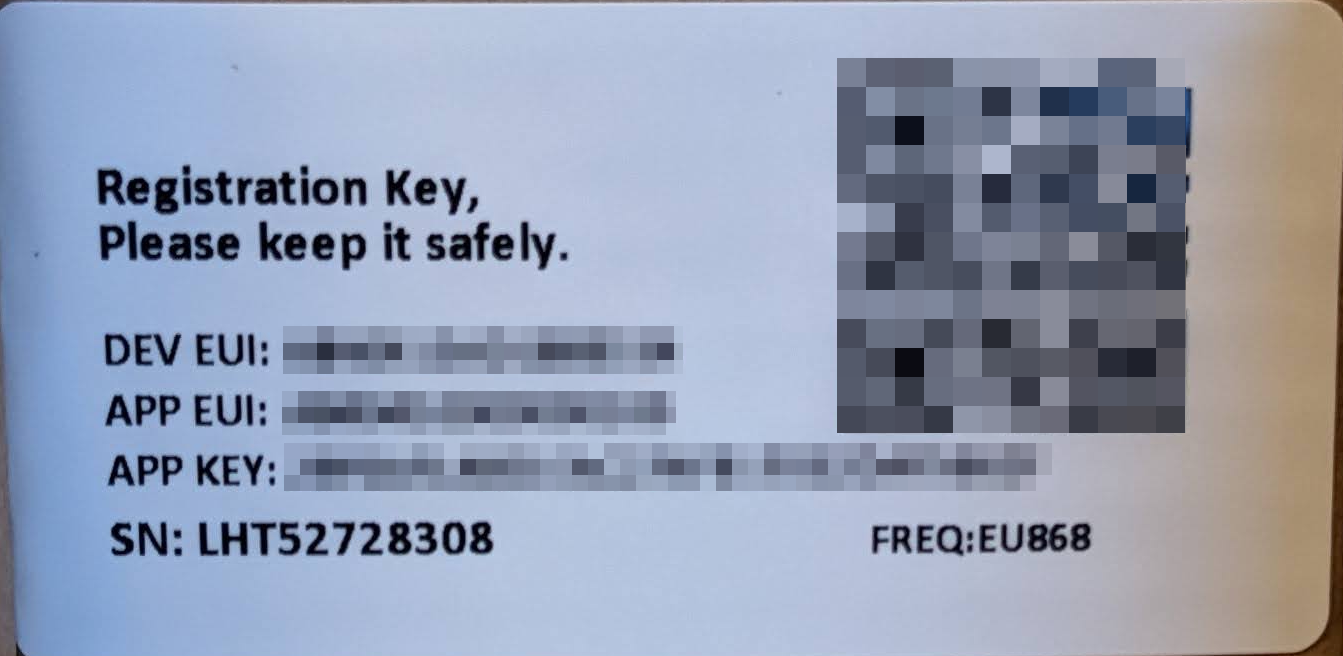

      Provisioning information (the JoinEUI/AppEUI, DevEUI and AppKey) can be found on a sticker inside the box.

      LHT52 provisioning information

      Note:

      The LHT52 does not support onboarding to The Things Stack using a QR code.

      Onboarding to The Things Stack

      The LHT52 can be onboarded to The Things Stack using the Device Repository or by manually entering the device specifics.

      The LoRaWAN® Device repository comprises over 800 end-device profiles, including the Dragino LHT52, which enables quick and easy onboarding to The Things Stack.

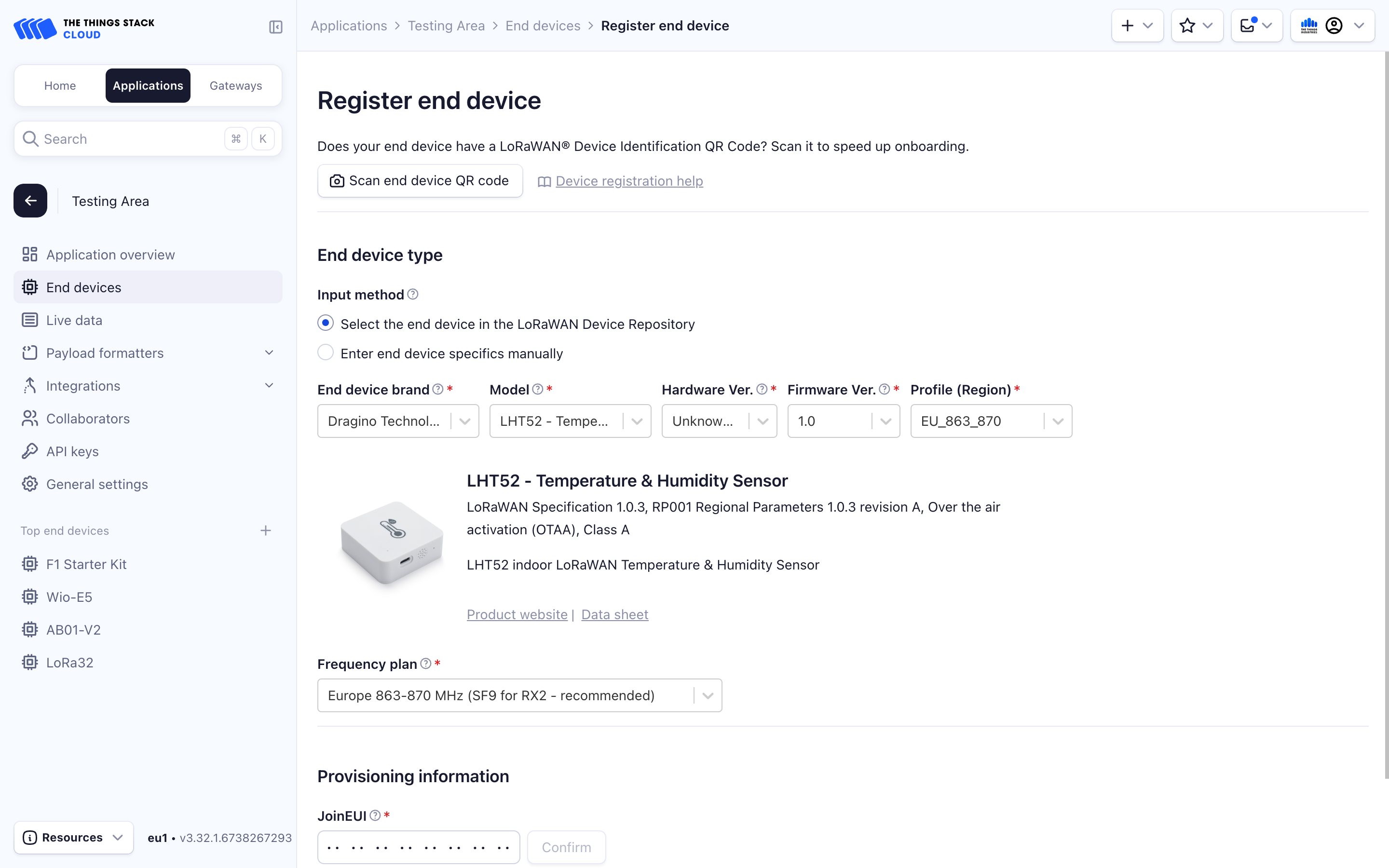

      In the End device type section, under Input method, select either the Select the end device in the LoRaWAN Device Repository or Enter end device specifics manually option. The Onboarding devices without QR codes section of the Adding Devices guide explains this procedure in detail. Following details are LHT52-specific:

      • End device brand: Dragino Technology Co., Limited
      • Model: LHT52
      • Hardware Ver.: Unknown ver.
      • Firmware Ver.: 1.0

      Then fill in the Provisioning information, which were found in the first steps.

      After configuring your device, select the Register end device button.

      Settings for registration through device repository

      If you prefer onboarding manually, in the End device type section, under Input Method, select the Enter end device specifics manually option. The Manually adding devices and Over the Air Activation (OTAA) guides explain this procedure in detail. Following details are specific to the LHT52:

      • LoRaWAN version: LoRaWAN Specification 1.0.3
      • Regional parameters version: RP001 Regional Parameters 1.0.3 revision A

      Then fill in the Provisioning information, which were found in the first steps.

      After configuring your device, select the Register end device button.

      Settings for manual registration
