      Sensative Strips

      Updated 20 January 2025 Edit on GitHub
      Copy page
      • View as MarkdownThis page as plain text
      • Open in ChatGPTAsk questions about this page
      • Open in ClaudeAsk questions about this page
      Generic Node Sensor Edition

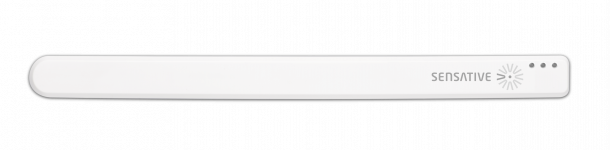

      The Sensative Strips is a family of sensors with multiple purposes. It contains devices such as humidity, temperature, light (lux), and magnetic open/close sensor.

      Provisioning Information

      Provisioning information (the JoinEUI/AppEUI, DevEUI and AppKey) can be found on a sticker inside the box.

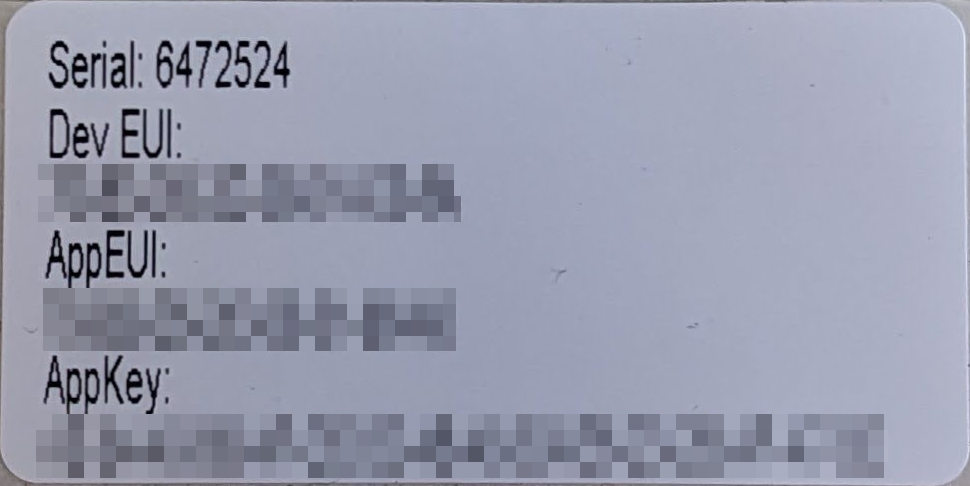

      Strips provisioning information

      Note:

      The Strips does not support onboarding with a QR code. You can onboard it in the section below.

      Onboarding to The Things Stack

      The device can be onboarded using the Device Repository or by manually entering the specific information.

      The LoRaWAN® Device repository comprises over 800 end-device profiles, including the Sensative Strips, which enables quick and easy registration with The Things Stack.

      In the End device type section, under Input method, select either the Select the end device in the LoRaWAN Device Repository or Enter end device specifics manually option. The Onboarding devices without QR codes section of the Adding Devices guide explains this procedure in detail. Following details are Strips-specific:

      • End device brand: Sensative AB
      • Model: Strips - Multisensor
      • Hardware Ver.: 1.0
      • Firmware Ver.: 1.0

      Then fill in the Provisioning information, which were found in the first steps.

      After configuring your device, select the Register end device button.

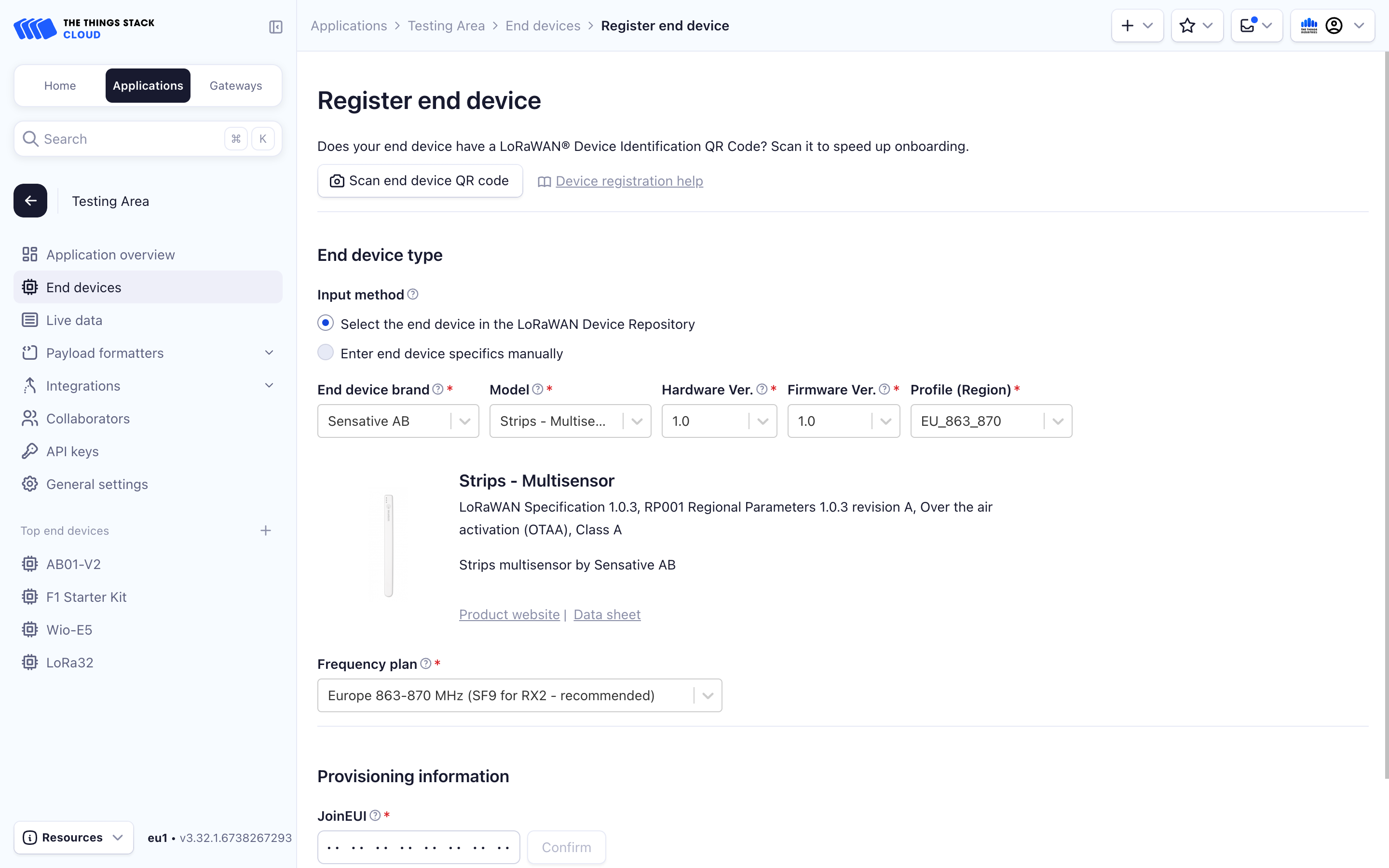

      Settings for registration through device repository

      If you prefer onboarding manually, in the End device type section, under Input Method, select the Enter end device specifics manually option. The Manually adding devices and Over the Air Activation (OTAA) guides explain this procedure in detail. Following details are specific to the Strips:

      • LoRaWAN version: LoRaWAN Specification 1.0.3
      • Regional parameters version: RP001 Regional Parameters 1.0.3 revision A

      Then fill in the Provisioning information, which were found in the first steps.

      After configuring your device, select the Register end device button.

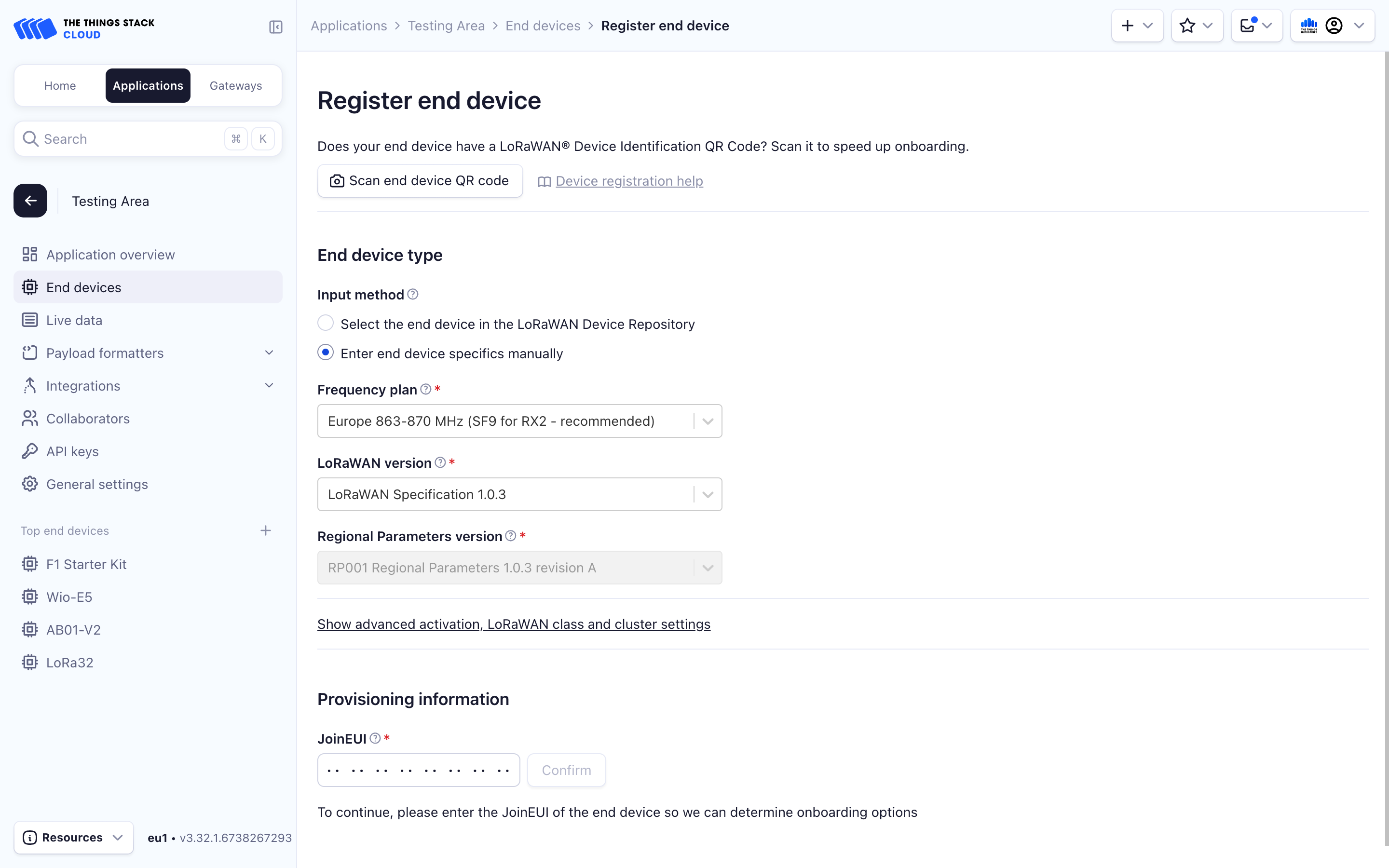

      Settings for manual registration

      Turning on the device

      When you receive the Strips it comes in “transport mode”, and the device will be off. When you remove the magnets for the first time, the device will automatically send a join request.

      If you have removed the magnets, and you need to manually join the device, take one of the magnets and slowly move it close to the round edge (Magnet sensor 2) of the strips 3 times, so that the green LED next to the Sensative logo blinks 3 times. This will trigger the device to send a join request.

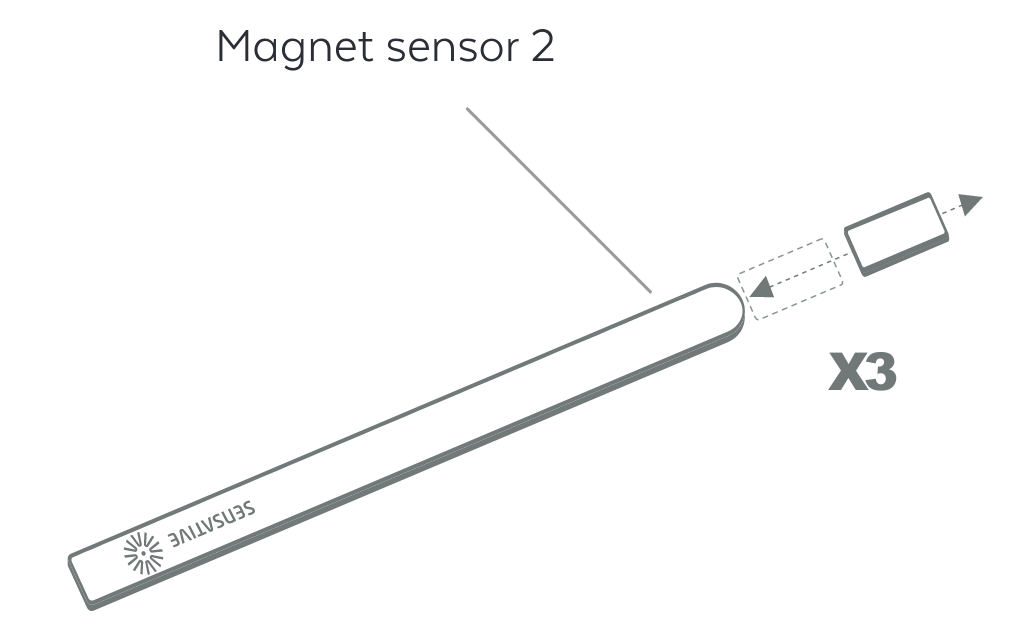

      Moving magnet to the end of the strips

      Note:

      One long green LED blink signals the device has successfully joined to The Things Stack.

      5 red blinks means the device failed to join to the network.
