      Connect Milesight UG85 with UDP Packet Forwarder

      Updated 20 January 2025 Edit on GitHub
      Copy page
      • View as MarkdownThis page as plain text
      • Open in ChatGPTAsk questions about this page
      • Open in ClaudeAsk questions about this page

      This section contains instructions for connecting the Milesight UG85 LoRaWAN® gateway to The Things Stack using the Semtech UDP Packet Forwarder.

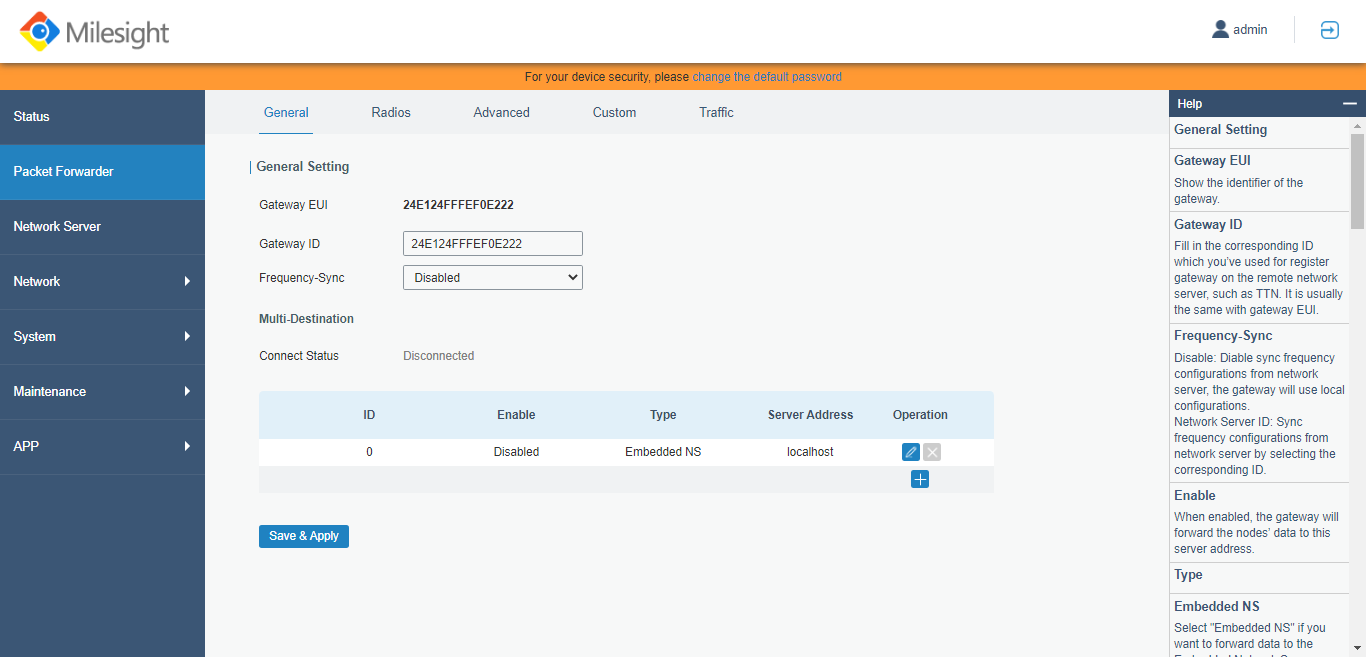

      In the Packet Forwarder menu and General tab, click the little + button to create a new server.

      Create new server

      In the server configuration options, check the Enable box.

      Choose Semtech as the Type.

      For the Server Address choose custom, and enter the address of The Things Stack deployment you are using. See Server Addresses section for help.

      Choose the appropriate Port Up and Port Down values. These are both 1700 by default in The Things Stack.

      Click Save to continue.

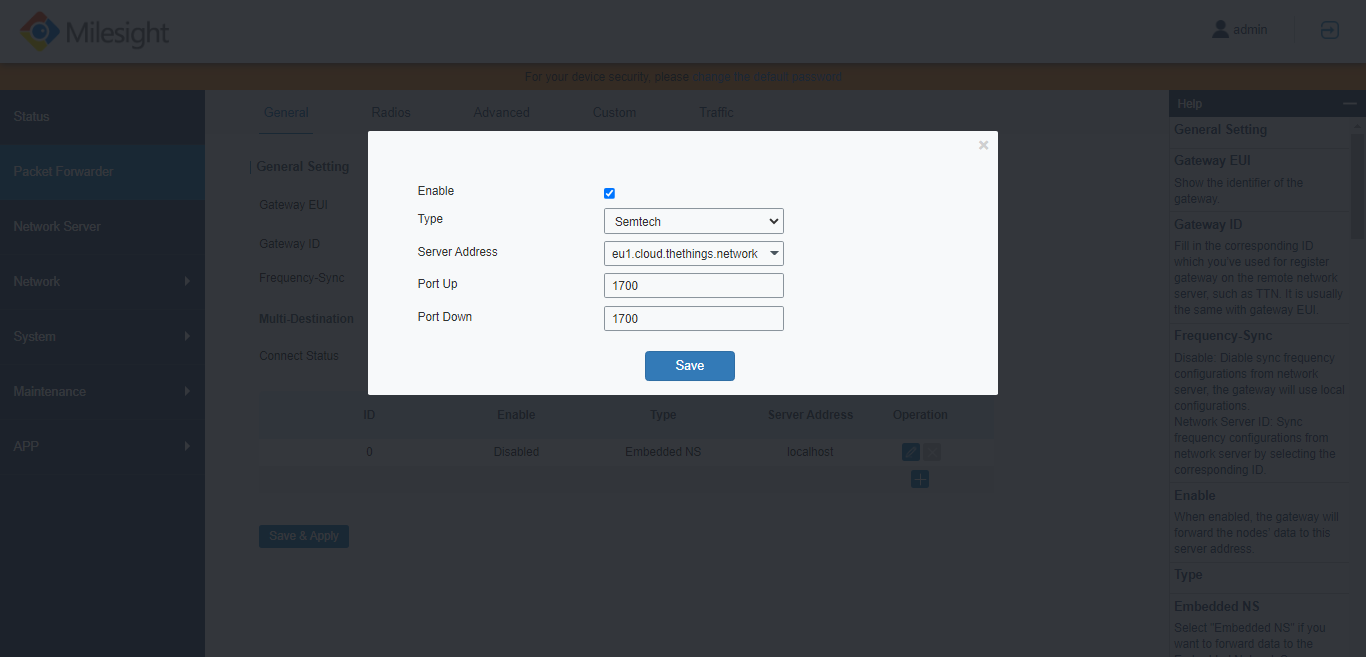

      Semtech Configuration

      If your configuration was successful, your gateway will connect to The Things Stack after a couple of seconds.
